14 inch Industrial mini Computer touch screen 15.6 inch AIO PC Celeron 1900 core I3 i5 i7 8G RAM 128G SDD Automation equipment
 |
| 14 inch Industrial mini Computer touch screen 15.6 inch AIO PC Celeron 1900 core I3 i5 i7 8G RAM 128G SDD Automation equipment |
The best product you are looking for is "14 inch Industrial mini Computer touch screen 15.6 inch AIO PC Celeron 1900 core I3 i5 i7 8G RAM 128G SDD Automation equipment". This product is available and ready to be purchased. Get attractive discounts every time you shop in our store (aliexpress.com). Aliexpress also provides a coupon of $ 3 for the first buyer to shop there. don't forget to bookmark our store page so you can go shopping again anytime..
| Name | Details |
|---|---|
| Buy now just | |
| Discount | 18 |
| Product id | 1005001755928840 |
| Vendor | balahome Store |
| Category | Computer & Office - Mini PC |
Buy Now On Aliexpress
Description :
14 inch(1600*900)/15.6 inch(1366*768) industrial PC resistive/capacitive touch computer
industrial computer parameters
Brand：YASHITENG Aterial：MetalMemory: 8GB DDR3 System Memory Storage:128G SSDSystem: WIN7/WIN8/WIN10/Liunx optional(Win7 Home Edition is installed by default) BIOS: AMI BIOSGraphic: IntelHD GraphicsColor: black (customizable color)Weight: about 5-6KgsSystem Parameter：
Configuration 1：integrated Intel Celeron Processor J1900（4 cores, 2m cache, up to 2.00 ≤ 2.41 GHz,TDP power consumption:10w）Storage space：128G SSD（internal storage：8GB DDR3 System memoryConfiguration 2：integrated Intel Core i3-4025U（Dual-core, 3MB cache, 1.9 GHz，TDP power consumption:15w）Storage space：128G SSD（internal storage：8GB DDR3 System memoryConfiguration 3：integrated Intel Core i3-6100U（Dual-core, 3MB cache, 2.3 GHz，TDP power consumption:15w）Storage space：128G SSD（internal storage：8GB DDR3 System memoryConfiguration 4：integrated Intel Core i5-4300U（Quad core, 3MB cache, 1.9 GHz，TDP power consumption:15w）Storage space：128G SSD（internal storage：8GB DDR3 System memoryConfiguration 5：integrated Intel Core i5-6360U（Quad core, 3MB cache, up to 2.00-3.10 GHz，TDP power consumption:15w）Storage space：128G SSD（internal storage：8GB DDR3 System memoryConfiguration 6：integrated Intel Core i7-3537U（Dual core, 4MB cache, 2.00 GHz，TDP power consumption:17w）Storage space：128G SSD（internal storage：8GB DDR3 System memoryConfiguration 7：integrated Intel Core i7-4500U（Quad core, 3MB cache, 1.9 GHz，TDP power consumption:15w）Storage space：128G SSD（internal storage：8GB DDR3 System memoryConfiguratio 8：integrated Intel Core i7-6500U（Quad core, 8MB cache, up to 2.50-3.10 GHz，TDP power consumption:15w）Storage space：128G SSD（internal storage：8GB DDR3 System memoryParameters of LCD Touch screen：
Brightness：250cd/m2 Contrast Ratio：1000:1Viewing Angle：Horizontal(left/right): 150°(75°/75°)Vertical(up/down): 150°(75°/75°)Response Time：30 (Typ.)(Tr+Td) (ms)Frame Rate：60Hz Color system：PAL/ NTSCInterface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audiopower requirement of system：+ 12V DC power inputPower adapter：input：100〜250VAC，50 / 60Hzoutput：60W Adapter（12V 5A）Working temperature：-20°C〜60°CRelative humidity：0％〜90％relative humidity, no condensatioPlug：AU,EU,USA,UK plug availableMenu Languages：English,,Francais,Italiano,Deutsch,Espanol,Russian,Traditional Chinese, Simplified Chinese,etcVISA Hole distance：75*75mmDelivery TimeSample:1~5 working days.10~100pcs:2~7 working days.More than 100pcs :5~15 working days★★★ SPECIAL REMINDER ★★★
LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame),etc.,can be customized for you(But need to meet the requirements of MOQ).If you have this demand,please contact us,we will provide you with timely and thoughtful service!Size

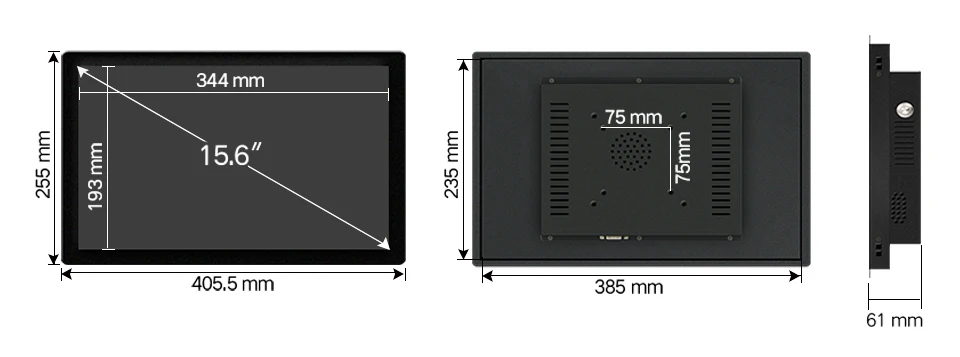

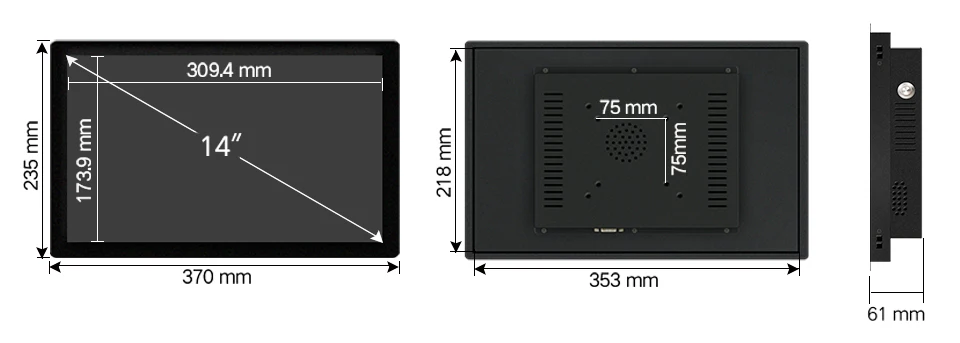

Resolution: 14 inch(1600*900)/15.6 inch(1366*768) ppiUnit of measure: mm

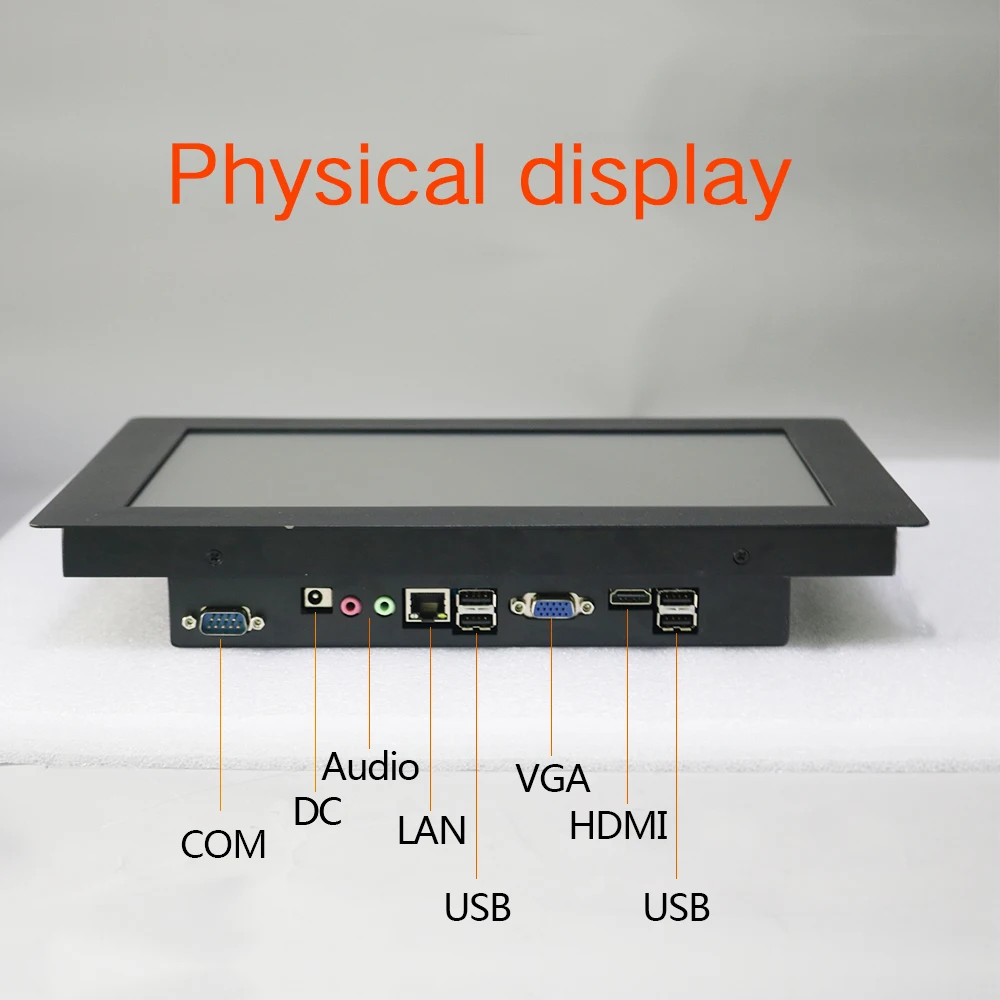

Product interface (support customization)
1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface, please contact us to customize 485 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio

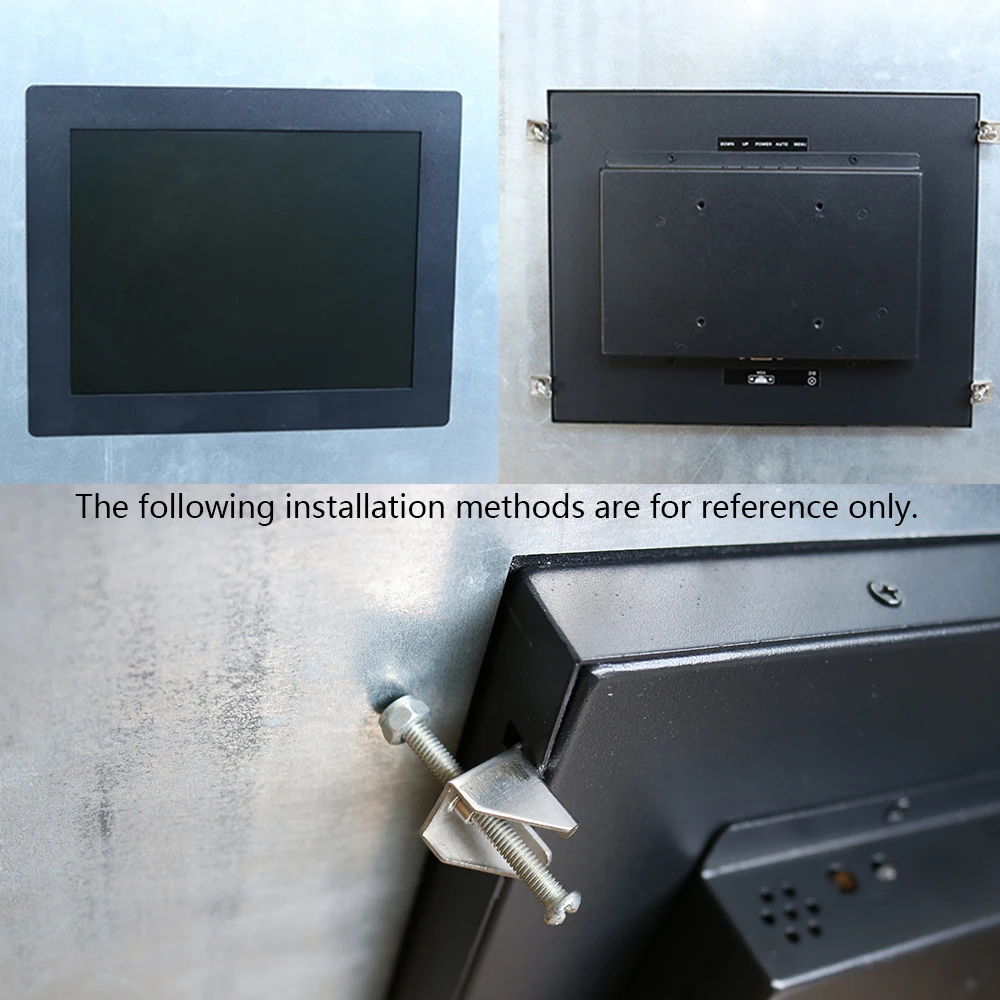

Installation Mode
There are eight small holes behind the product, the distance between the four installation holes inside is 75mm x 75mm, and the outside four mounting holes are 100mm x 100mm, equipped with wall hanging installation accessories and embedded installation accessories, the installation mode is flexible, and the following installation methods are for reference only.
Sensitive Touch Rapid Response
Resistive touch(Single touch，pressure sensing)Resistive touch times>35 million times, backlight life 50000hCapacitive touch (multi point touch, induction by current )Capacitive touch times >50 million times, backlight life 50000h
Industrial-grade custom motherboard
A variety of industrial motherboards are available, with high-performance processors and low noise consumption. First choice for industrial use, stable operation in harsh environments.
The machine runs stably
24/7 stable operationEfficient work for a long time, fast cooling
Metal case, resist to high and low temperature environment
Industrial cold-rolled sheet metal shell, cold and high temperature resistance, as low as -20 ℃ ~ 60 ℃.Can effectively adapt to stable work in harsh environments
About customization
Please contact customer service to state your needs.Support logo, shell, color, function, interface and other customization, please contact us for the best price
Product application field display
Products are widely used in industrial control CNC industry, medical industry, factory production workshop,Bank automatic ticket vending machines, supermarket advertising, video surveillance, etc.
packaging & shipping
1). Usually,we ship within 3-5 working days after payment receive,Items purchased after 12:00pm on Friday, on holiday,or over the weekend will be shipped within the next business day.2). We many shipping options as possible,including DHL,UPS,EMS,Fedex and TNT,ect.
About feedback
1). Welcome to our store and thanks for you are interested in our products,we have already left positive feedback of you, and sincerely hope you can do the same for us after receiving the products,2).If you are not happy with our products or services, please contact us beforeleaving a neutral or feedback,We will try our utmost to resolve the issue to our mutual satisfaction.3).It would be much appreciated if you can award us with “Five Stars” for Detailed Seller Ratings.On the other hand, if you feel that we do not achieve that level of performance,please feel free to contact us as well.
